2-PHASEN SCHRITTMOTOREN
Nema 17 mit Litzen SM217S, SM217M, SM217L
| Typ | Alle | S | M | L |
| NEMA | 17 | |||
| Haltemoment [Ncm] | 28 | 40 | 52 | |
| Strom [A] | 1,7 | |||
| Auflösung [pro Step] | 1,8° | |||
| Widerstand [Ohm±10%] | 1,2 | 1,5 | 1,8 | |
| Induktivität [mH±20%] | 1,8 | 2,8 | 3,2 | |
| Rotorträgheit [kgm2·10-7] | 34 | 54 | 68 | |
| Anschluss | 4 Litzen | |||
| Größe [mm] | 42,3 | |||
| Länge [mm] | 34 | 40 | 48 | |
| Gewicht [kg] | 0,22 | 0,28 | 0,35 |
Nema 23 mit Litzen SM223S, SM223M, SM223L
Nema 23 mit Klemmenkasten SM223S-K, SM223M-K, SM223L-K
| Typ | Alle | S | M | L |
| NEMA | 23 | |||
| Haltemoment [Nm] | 1,1 | 1,5 | 1,8 | |
| Strom [A] | 4,2 | |||
| Auflösung [pro Step] | 1,8° | |||
| Widerstand [Ohm±10%] | 0,4 | 0,55 | 0,6 | |
| Induktivität [mH±20%] | 1,2 | 1,2 | 1,8 | |
| Rotorträgheit [kgm2·10-4] | 0,28 | 0,38 | 0,44 | |
| Anschluss | 4 Litzen [K]: PG19 |
|||
| Größe [mm] | 56 | |||
| Länge [mm] | 56 [K]: 85 |
64 [K]: 94 |
76 [K]: 106 |
|
| Gewicht [kg] | 0,65 [K]: 0,75 |
0,80 [K]: 0,90 |
1,00 [K]: 1,10 |

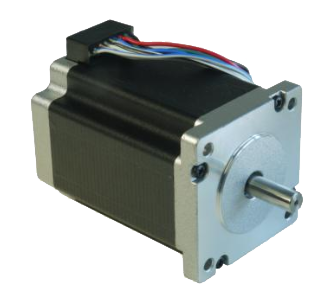

Nema 24 mit Litzen SM2234, SM224M, SM224L
Nema 24 mit Klemmenkasten SM224S-K, SM224M-K, SM224L-K
| Typ | Alle | S | M | L |
| NEMA | 24 | |||
| Haltemoment [Nm] | 1,8 | 2,2 | 3,0 | |
| Strom [A] | 4,2 | |||
| Auflösung [pro Step] | 1,8° | |||
| Widerstand [Ohm±10%] | 0,5 | 0,6 | 0,7 | |
| Induktivität [mH±20%] | 1,5 | 1,8 | 3,2 | |
| Rotorträgheit [kgm2·10-4] | 0,45 | 0,55 | 0,68 | |
| Anschluss | 4 Litzen [K]: PG19 |
|||
| Größe [mm] | 60 | |||
| Länge [mm] | 64 [K]: 96 |
76 [K]: 108 |
90 [K]: 122 |
|
| Gewicht [kg] | 0,85 [K]: 1,0 |
1,15 [K]: 1,3 |
1,30 [K]: 1,45 |
SM224L[1]-12-LIFY-BFL als Ersatz für SM224L[1]-011
![SM224L[1]-011](img/motors/SM224L[1]-011.jpg)
Standard SM224L Motor mit:
- 4 polig bipolar Verschaltung
- Gewebeschlauch
- Aderendhülsen
SM224L[1]-021
![SM224L[1]-021](img/motors/SM224L[1]-021.jpg)
Standard SM224L Motor mit:
- 4 polig bipolar Verschaltung
- Stecker
SM224L[1]-031
![SM224L[1]-031](img/motors/SM224L[1]-031.jpg)
Standard SM224L Motor mit:
- 4 polig bipolar Verschaltung
- Stecker
- 1,4 Nm Haltebremse
Nema 34 mit Litzen SM234S, SM234M, SM234L
Nema 34 mit Klemmenkasten SM234S-K, SM234M-K, SM234L-K
| Typ | Alle | S | M | L |
| NEMA | 34 | |||
| Haltemoment [Nm] | 3,1 | 7,0 | 9,0 | |
| Strom [A] | 7,0 | |||
| Auflösung [pro Step] | 1,8° | |||
| Widerstand [Ohm±10%] | 0,2 | 0,28 | 0,35 | |
| Induktivität [mH±20%] | 1,0 | 2,4 | 3,4 | |
| Rotorträgheit [kgm2·10-4] | 0,85 | 1,55 | 2,2 | |
| Anschluss | 8 Litzen [K]: PG19 |
|||
| Größe [mm] | 86 | |||
| Länge [mm] | 66 [K]: 106 |
98 [K]: 138 |
126 [K]: 165 |
|
| Gewicht [kg] | 1,75 [K]: 1,75 |
2,85 [K]: 2,85 |
3,90 [K]: 4,15 |
2-PHASE STEPPING MOTORS
Nema 17 with leads SM217S, SM217M, SM217L
| Type | All | S | M | L |
| NEMA | 17 | |||
| Holding torque [Ncm] | 28 | 40 | 52 | |
| Current [A] | 1,7 | |||
| Resolution [pro Step] | 1,8° | |||
| Resistance [Ohm±10%] | 1,2 | 1,5 | 1,8 | |
| Inductivity [mH±20%] | 1,8 | 2,8 | 3,2 | |
| Rotor innertia [kgm2·10-7] | 34 | 54 | 68 | |
| Connection | 4 Leads | |||
| Size [mm] | 42,3 | |||
| Length [mm] | 34 | 40 | 48 | |
| Weight [kg] | 0,22 | 0,28 | 0,35 |
Nema 23 with leads SM223S, SM223M, SM223L
Nema 23 with terminal box SM223S-K, SM223M-K, SM223L-K
| Type | All | S | M | L |
| NEMA | 23 | |||
| Holding torque [Nm] | 1,1 | 1,5 | 1,8 | |
| Current [A] | 4,2 | |||
| Resolution [pro Step] | 1,8° | |||
| Resistance [Ohm±10%] | 0,4 | 0,55 | 0,6 | |
| Inductivity [mH±20%] | 1,2 | 1,2 | 1,8 | |
| Rotor innertia [kgm2·10-4] | 0,28 | 0,38 | 0,44 | |
| Connection | 4 Leads [K]: PG19 |
|||
| Size [mm] | 56 | |||
| Length [mm] | 56 [K]: 85 |
64 [K]: 94 |
76 [K]: 106 |
|
| Weight [kg] | 0,65 [K]: 0,75 |
0,80 [K]: 0,90 |
1,00 [K]: 1,10 |
Nema 24 with leads SM224S, SM224M, SM224L
Nema 24 with terminal box SM224S-K, SM224M-K, SM224L-K
| Type | All | S | M | L |
| NEMA | 24 | |||
| Holding torque [Nm] | 1,8 | 2,2 | 3,0 | |
| Current [A] | 4,2 | |||
| Resolution [pro Step] | 1,8° | |||
| Resistance [Ohm±10%] | 0,5 | 0,6 | 0,7 | |
| Inductivity [mH±20%] | 1,5 | 1,8 | 3,2 | |
| Rotor innertia [kgm2·10-4] | 0,45 | 0,55 | 0,68 | |
| Connection | 4 Leads [K]: PG19 |
|||
| Size [mm] | 60 | |||
| Length [mm] | 64 [K]: 96 |
76 [K]: 108 |
90 [K]: 122 |
|
| Weight [kg] | 0,85 [K]: 1,0 |
1,15 [K]: 1,3 |
1,30 [K]: 1,45 |
SM224L[1]-12-LIFY-BFL as replacement for SM224L[1]-011
Standard SM224L motor with:
- 4 pole bipolar wiring
- Fabric tubing
- Ferulles
SM224L[1]-021
Standard SM224L motor with:
- 4 pole bipolar wiring
- Connector
SM224L[1]-031
Standard SM224L motor with:
- 4 pole bipolar wiring
- Connector
- 1.4 Nm holding brake
Nema 34 with leads SM234S, SM234M, SM234L
Nema 34 with terminal box SM234S-K, SM234M-K, SM234L-K
| Type | All | S | M | L |
| NEMA | 34 | |||
| Holding torque [Nm] | 3,1 | 7,0 | 9,0 | |
| Current [A] | 7,0 | |||
| Resolution [pro Step] | 1,8° | |||
| Resistance [Ohm±10%] | 0,2 | 0,28 | 0,35 | |
| Inductivity [mH±20%] | 1,0 | 2,4 | 3,4 | |
| Rotor innertia [kgm2·10-4] | 0,85 | 1,55 | 2,2 | |
| Connection | 8 Leads [K]: PG19 |
|||
| Size [mm] | 86 | |||
| Length [mm] | 66 [K]: 106 |
98 [K]: 138 |
126 [K]: 165 |
|
| Weight [kg] | 1,75 [K]: 1,75 |
2,85 [K]: 2,85 |
3,90 [K]: 4,15 |
